HOTflow? HEATING SYSTEM — CSM

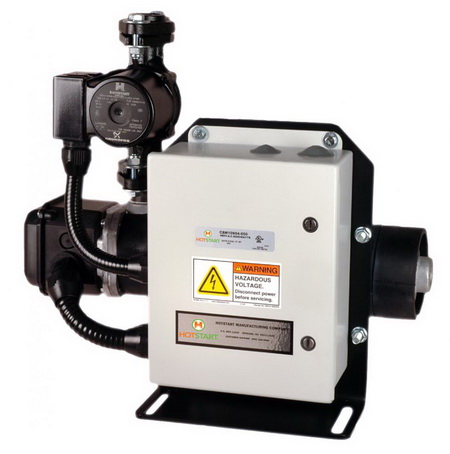

HOTSTART’s HOTflow™ heating system (CSM model) is a complete coolant preheater with thermostat, pump and all required controls. The CSM model heats engines ranging in size from 15L-100L displacement. Forced circulation of the coolant delivers uniform heating throughout the entire engine, extends element life and offers a significant reduction in electrical consumption.
SPECIFICATIONS：
1. Heating Fluid: Engine coolant (50% glycol/50% water)
2. Heat Power: 3, 6, 9 and 12 kW
3. Voltage Range: 1 or 3 Phase 120-690V (50 or 60Hz)
4. Fixed Thermostat: 100-120°F (38-49°C)
5. Fluid Capacity: 0.6 gal (2.2L)
6. Flow: 10GPM (2.2m3/hr) @ 10ft head (3 mWc)
7. Pump Power: 70W (50Hz), 97W (60Hz)
8. Max Pressure: 125 psi (860 kPa)
9. Pressure Loss: .2 psi (1.5 kPa)
10. Inlet Plumbing: 1.0” NPT
11. Outlet Plumbing: 1.0” NPT
12. Min/Max Ambient Temp: -4°F (-20°C)/104°F (40°C)
13. Main Control Box Ingress Protection: NEMA 4 (IP66)
14. Motor Ingress Protection: IP44 (50Hz), NEMA 2 (60Hz)\
